Make: Hexaplast
Model: HP-LE-01

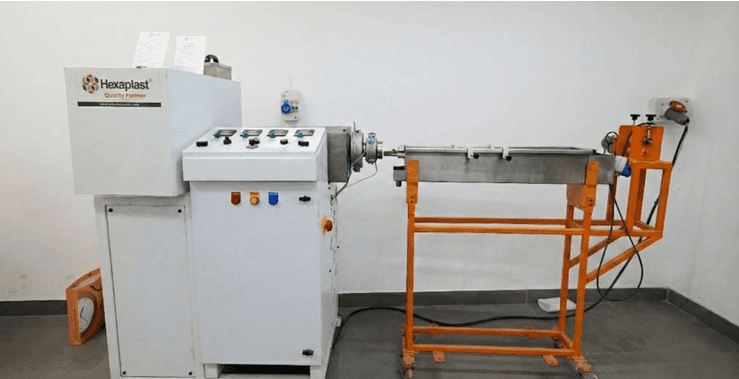

A lab extruder for plastics is a small-scale extrusion machine designed for research, development, and testing of polymer materials in laboratory settings. These extruders simulate industrial extrusion processes but handle smaller amounts of material, typically from a few hundred grams to a few kilograms, allowing precise control and optimization of processing parameters before scaling up to production.

Lab Extruder

Specifications

  • Machine output: 3–5 kg/hr

  • Screw diameter: 24.9 mm

  • Screw RPM: 0–75 RPM

  • Barrel L/D ratio: 25:1

  • Compression ratio: 1:3 Temperature range: 0–300 °C

  • Heating media: SS ceramic band, 230 V AC

  • Application: Mixing and producing different profiles of polymer composites for testing material properties
