Make: Bruker
Model: D8 Advance

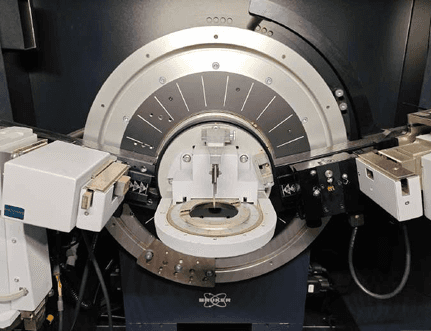

The Bruker D8 Advance is a highly versatile and modular X-ray diffractometer (XRD) system used for comprehensive materials characterization. Powder X-ray diffraction (XRD) is used for identifying crystalline materials, determining their purity, and characterizing their structural properties. Key applications include phase analysis, which identifies the components in a mixture, and quantifying the amount of each phase. It is widely applied in geology, materials science, and pharmaceuticals to analyze everything from minerals and ceramics to active pharmaceutical ingredients

Powder X-Ray Diffractometer

Specifications

  • Detector: LYNXEYE (1D)

  • Source (Anode): Cu (1.54060 Å), Sealed Tube

  • Maximum operating power: 40 kV, 40 mA

  • Goniometer: 2 circle

  • Geometry: Bragg-Brentano (Theta-Theta)

  • Slit Mode: Fixed

  • Sample mounting: Single (Manual)

  • Kβ Filter: Ni_LowBeta

  • Temperature: Room temperature (Ambient)

  • Application: Phase identification and quantification, microstructure analysis
