Make: Hexaplast
Model: HP-TRM-1

A two-roll mill is used for mixing and compounding rubber and elastomeric materials, ensuring thorough dispersion of fillers, additives, and colorants for consistent material properties. It provides precise control over shear and temperature, enabling uniform blending and improved material homogeneity. This process enhances the mechanical performance, processability, and overall quality of the final rubber compound.

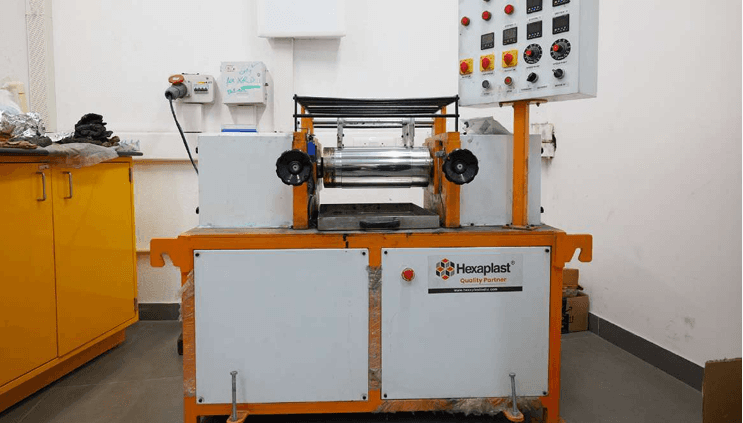

Two Roll Mill

Specifications

  • Roll diameter: 150 mm

  • Roll width: 350 mm

  • Roll working area: 250 mm width

  • Heating power: 5 kW

  • Roll speed: 18 / 23 RPM

  • Roll temperature: 300 °C

  • Heating load: 3 kW per roll

  • Friction ratio: 1:1.2
