Make: INSTRON

Model: BI-7003

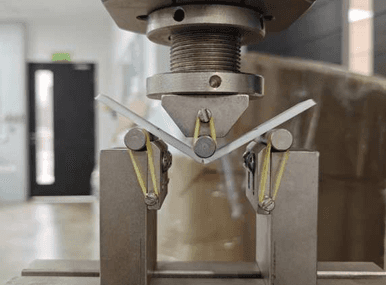

The Universal Testing Machine (UTM) is a highly sensitive device used to measure the mechanical properties of materials. It applies controlled forces such as tension, compression, bending, fatigue, and shear, measuring material response to determine strength, stiffness, and elasticity. It supports ASTM and ISO standards.

Universal Testing Machine (UTM)

Specifications

  • Capacity: 25 kN

  • Actuator stroke: 50 mm

  • Number of columns: 2

  • Frame stiffness: 160 MN/m

  • Load cell accuracy: 0.3% of full scale

  • Cycling frequency: 0–65 Hz

  • Column clearance: 400 mm

  • Daylight opening: 700 mm

  • Application: Evaluating mechanical properties of materials
